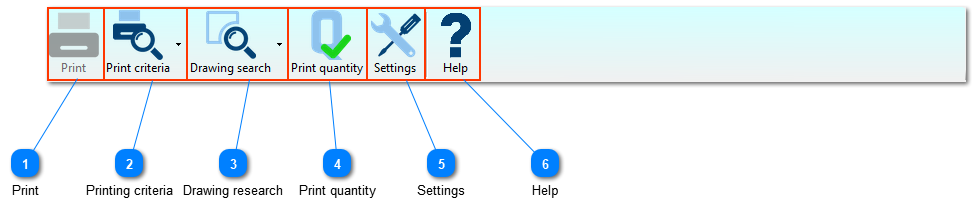

 Print
The print key is disabled when not all sheet formats are selected or the models have not been checked
Key enabled for printing
Once the print is launched an interruption window will open where it's possible to interrupt the ongoing process |
|
 Printing criteriaOpens a drop-down menu with the following options:
-
Alphabetic order: The drawing are printed in an alphabetical order
-
From the left: The drawing are printed from the left
-
By sheet dimension: The drawing are printed by sheet dimension
|
|
 Drawing research
Opens a drop-down menu with the following options:
-
Research in the same position of the model (research of the drawings only in the folder where the model is located) -
Reseach in the whole workspace (research the drawings inside the whole workspace)
|
|
 Print quantity
The quantity of details will not be printed
The quantity of the pieces for every drawing indicated in the option menu will be printed
|
|
 SettingsOpens option window where the coordinates for the representation of the text of the quantity can be defined
After setting the coordinates it is recommended to make a print test
|
|
 Help
Opens an online manual of the Addin in use
|
|
