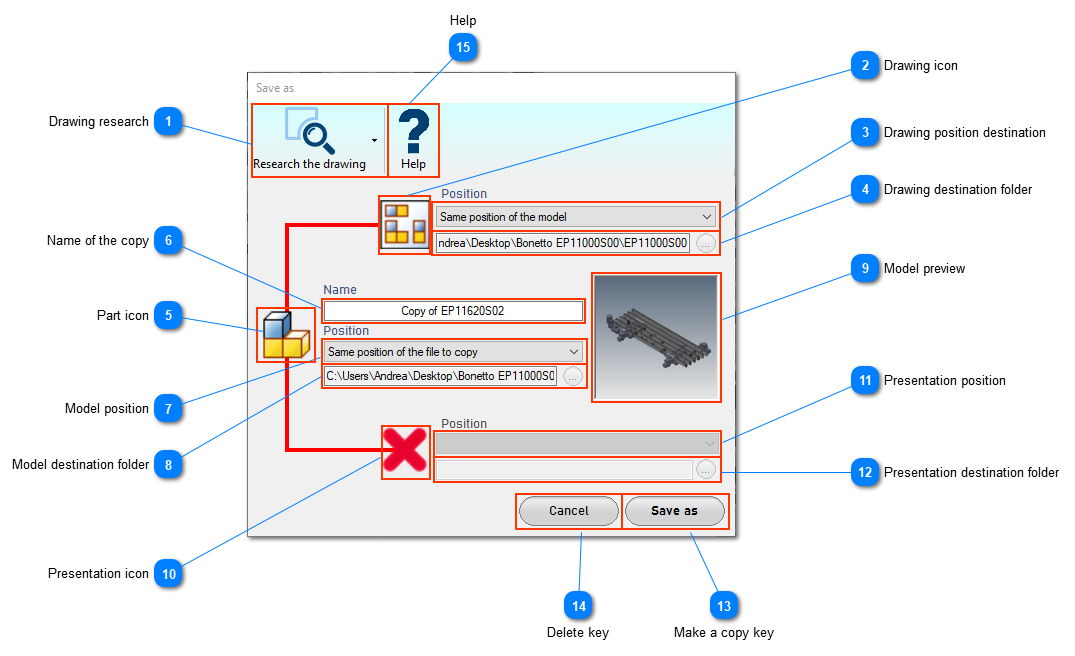

Save as window

Drawing research

Opens a drop-down menu with the following options:

Research in the same position of the model (research of the drawings and the presentation only in the folder where the model is located)
Reseach in the whole workspace (research the drawings and the presentation inside the whole workspace)

In cima

Drawing icon

The drawing is an DWG. The sistem does not distinguish between the Inventor dwg and Autocad dwg

The drawing is an IDW

The drawing has not been found

When this icon shows up it means that an error has occurred, by hovering over it with the mouse, the problem will be described

In cima

Drawing position destination

Opens a drop-down menu with the following options:

Same position of the file to be copied: saves the drawing in the same position of the drawing to be copied
Same position of the model: saves the drawing in the same position that the copied model will have
Custom position: choose the folder where to copy the drawing

In cima

Drawing destination folder

Shows the destination folder

If the option "custom folder" has been selected then the key on the right that allows to choose the destination folder will be enabled

In cima

Part icon

The model is an assembly

The model is a part

When this icon shows up it means that an error has occurred, by hovering over it with the mouse, the problem will be described

In cima

Name of the copy

Enter the name to save the model with. This name is also asigned to the drawing and the presentation (if present). Writing the extension is not needed

In cima

Model position

Opens a drop-down menu with the following options:

Same position of the file to be copied: saves the model in the same position of the original model
Custom position: choose the folder where to copy the model

In cima

Model destination folder

Shows the destination folder

If the option "custom folder" has been selected then the key on the right that allows to choose the destination folder will be enabled

In cima

Model preview

In cima

Presentation icon

The presentation has been found

The presentation has not been found

When this icon shows up it means that an error has occurred, by hovering over it with the mouse, the problem will be described

In cima

Presentation position

Opens a drop-down menu with the following options:

Same position of the file to be copied: saves the presentation in the same position of the presentation to be copied
Same position of the model: saves the presentation in the same position that the copied model will have
Custom position: choose the folder where to save the presentation
