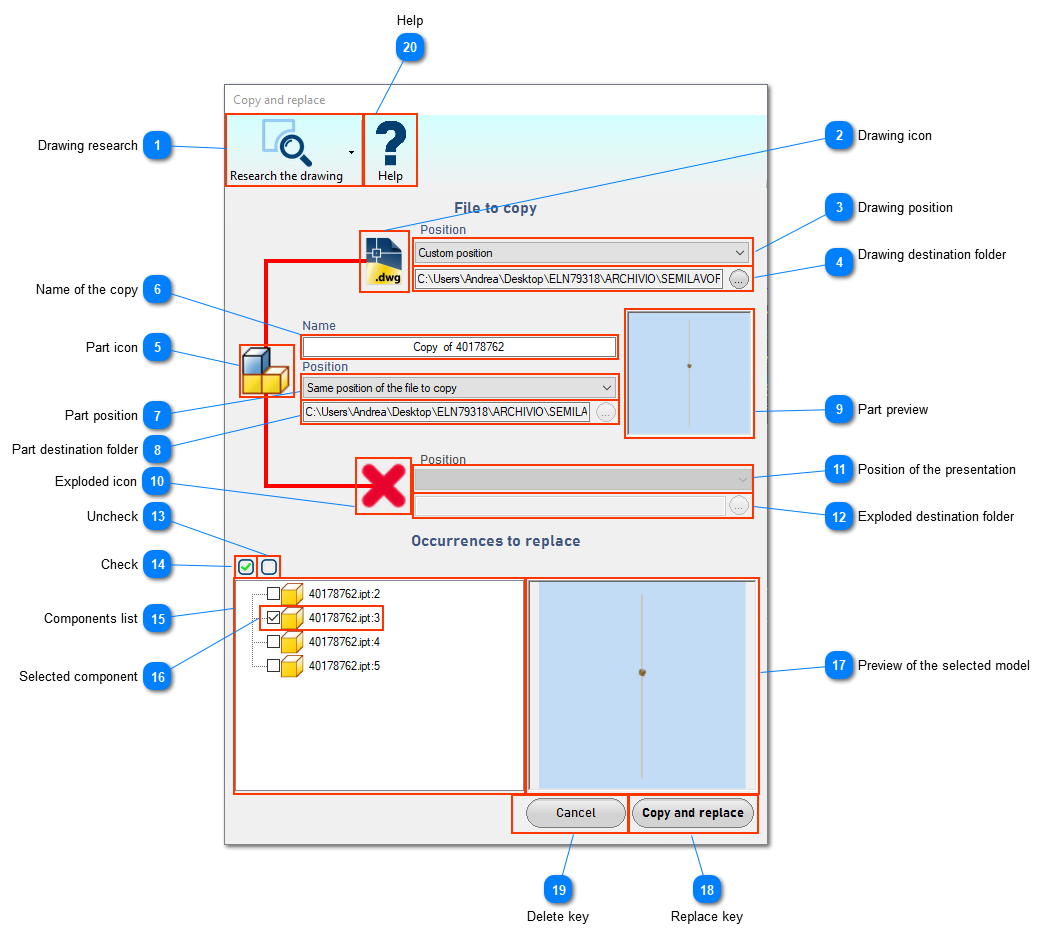

Copy and replace window

Drawing research

Opens a drop-down menu with the following options:

Research in the same position of the model (research of the drawings only in the folder where the model is located)
Reseach in the whole workspace (research the drawings inside the whole workspace)

In cima

Drawing icon

The drawing is an DWG. The sistem does not distinguish between the Inventor dwg and Autocad dwg

The drawing is an IDW

The drawing has not been found

When this icon shows up it means that an error has occurred, by hovering over it with the mouse, the problem will be described

In cima

Drawing position

Opens a drop-down menu with the following options:

Same position of the file to be copied: saves the drawing in the same position of the drawing to be copied
Same position of the model: saves the drawing in the same position that the copied model will have
Custom position: choose the folder where to copy the drawing

In cima

Drawing destination folder

Shows the destination folder

If the option "custom folder" has been selected then the key on the right that allows to choose the destination folder will be enabled

In cima

Part icon

The model is an assembly

The model is a part

When this icon shows up it means that an error has occurred, by hovering over it with the mouse, the problem will be described

In cima

Name of the copy

Indicate the name that has to be assigned to the copy

In cima

Part position

Opens a drop-down menu with the following options:

Same position of the file to be copied: saves the component in the same position of the original component
Custom position: choose the folder where to copy the component

In cima

Part destination folder

Shows the destination folder

If the option "custom folder" has been selected then the key on the right that allows to choose the destination folder will be enabled

In cima

Part preview

In cima

Exploded icon

The presentation has been found

The presentation has not been found

When this icon shows up it means that an error has occurred, by hovering over it with the mouse, the problem will be described

In cima

Position of the presentation

Opens a drop-down menu with the following options:

Same position of the file to be copied: saves the presentation in the same position of the presentation to be copied
Same position of the model: saves the presentation in the same position that the copied model will have
Custom position: choose the folder where to save the presentation

In cima

Exploded destination folder

Shows the destination folder

If the option "custom folder" has been selected then the key on the right that allows to choose the destination folder will be enabled

In cima

Uncheck

Removes all the checks from the components

In cima

Check

Adds the checks to all the components

In cima

Components list

This control panel allows to show all the components that refer to the file to be copied.

They are showed in a tree-like hierarchy to highlight the point where they are.

The crossed out texts indicate that the component can not be replaced because it is not a file to be copied. These assemblies are being showed to understand in which context the components to replace can be found.
